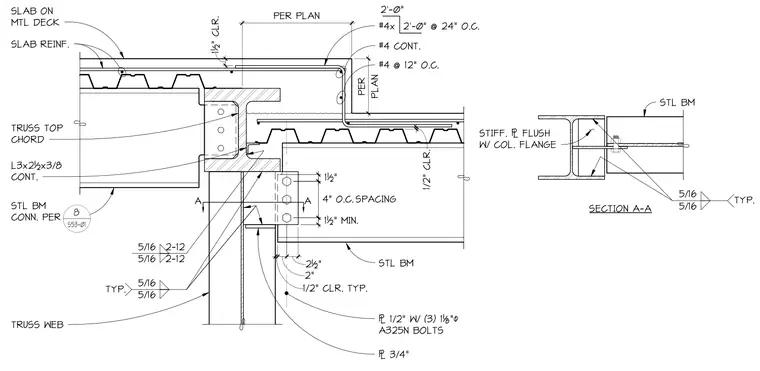

A structural steel connection joins a steel truss top chord and a steel beam supporting a concrete slab on metal deck. The steel beam frames into a column using a one-half-inch plate connected by three one-and-one-eighth-inch diameter A325N bolts, with a three-quarter-inch plate and continuous three-by-two-and-a-half-by-three-eighths-inch angle. Section A-A shows a steel beam stiffener plate set flush with the column flange, welded with five-sixteenth-inch fillet welds typically. Continuous number four reinforcing bars and number four bars spaced at twelve inches on center are embedded in the slab stepping over the deck profile with a one-half-inch typical clearance.
PER PLAN PLAN PER 1½" 1½" MIN. SPACING 4" O.C. 1/2" CLR. TYP. 2" 2½" A A 1½" CLR. SECTION A-A STL BM CONN. PER 8 S53-01 5/16 2-12 5/16 2-12 5/16 5/16 TYP. 5/16 5/16 TYP. STL BM STIFF. FLUSH W/ COL. FLANGE 1/2" CLR. #4 CONT. #4x 2'-0" @ 24" O.C. #4 @ 12" O.C. 2'-0" L3x2½x3/8 CONT. SLAB REINF. TRUSS TOP CHORD SLAB ON MTL DECK 1/2" W/ (3) 1 "' A325N BOLTS STL BM 3/4" TRUSS WEB
