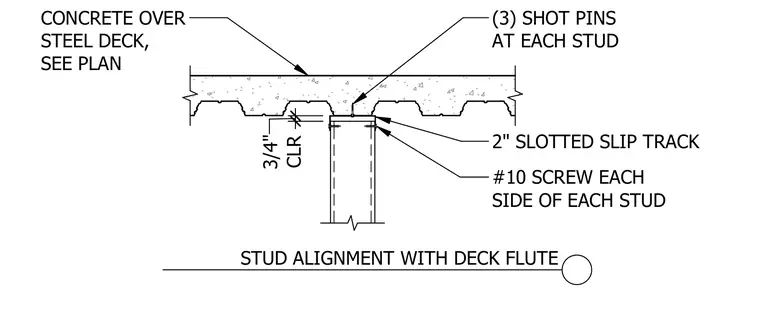

A two-inch slotted slip track connects to the top of the cold-formed metal stud framing, secured with a number ten screw on each side of each stud. Three shot pins anchor the track assembly into the concrete over steel deck flute, maintaining a three-quarter-inch clearance.
2" SLOTTED SLIP TRACK #10 SCREW EACH SIDE OF EACH STUD CONCRETE OVER STEEL DECK, SEE PLAN (3) SHOT PINS AT EACH STUD STUD ALIGNMENT WITH DECK FLUTE CLR 3/4"
