Structural · S-FQ6YZ

Typical Exterior Column Connection at Floor Slab

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Ceilings Floors / Slabs Decks Arches Bracing

Connections

Bracing Connection Deck Attachment

About this detail

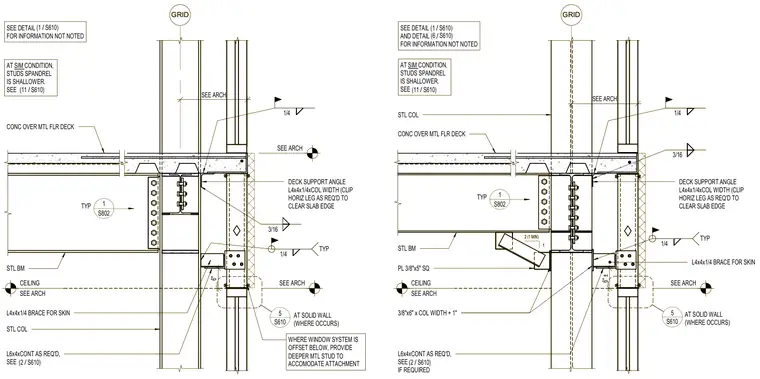

A typical exterior steel column connection at the floor level features a concrete slab over a metal floor deck framing into a steel beam. The steel beam connects to the steel column using a bolted shear tab, supplemented by a continuous deck support angle clipped as required to clear the slab edge. A continuous angle and skin bracing members provide attachment points for exterior wall construction and window systems. Additional notes reference architectural grid lines, ceiling heights, and related details for solid wall conditions and stud spandrel adjustments.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
