Standard corner clip geometry and dimensioning requirements for steel continuity plates welded to wide flange sections require a minimum one-half inch radius for the plate corner clip. Dimensions dictate specific fabrication tolerances, including an allowable tolerance of minus zero inches to plus one-quarter inch for one dimension, and minus one-quarter inch to plus zero inches for another.

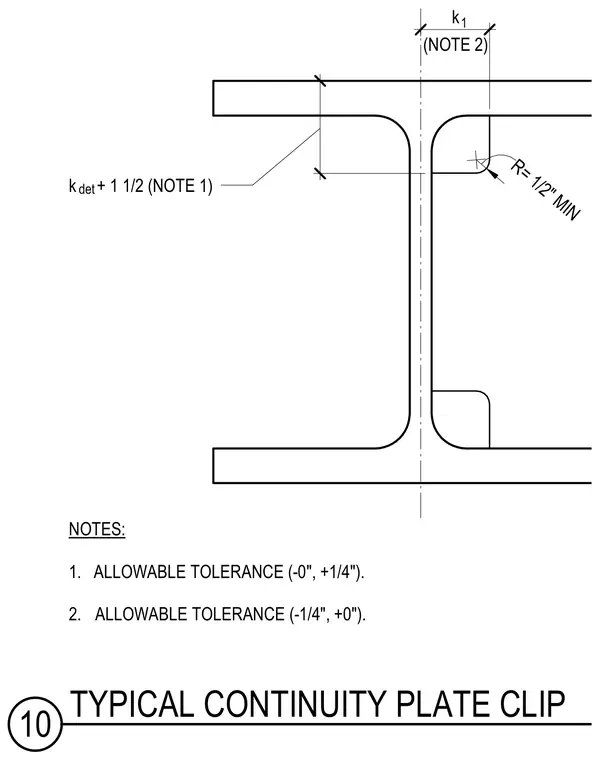

NOTES: 1. ALLOWABLE TOLERANCE (-0", +1/4"). 2. ALLOWABLE TOLERANCE (-1/4", +0"). 3 1/2" 2 5/8" k (NOTE 2) k + 1 1/2 (NOTE 1) det 1 R= 1/2" MIN 10 TYPICAL CONTINUITY PLATE CLIP
