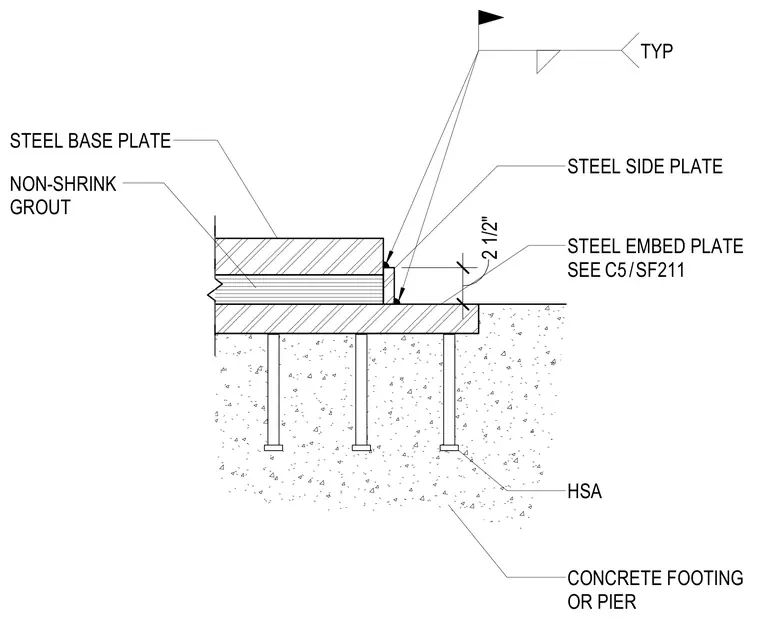

A steel base plate bears on non-shrink grout over a concrete footing or pier. A steel side plate is welded to the base plate assembly and tied to a steel embed plate anchored into the concrete with HSA anchors. Fillet welds secure the steel plates together per typical structural details.
STEEL BASE PLATE NON-SHRINK GROUT STEEL SIDE PLATE STEEL EMBED PLATE SEE CONCRETE FOOTING OR PIER TYP 2 1/2" /SF211 C5 HSA
