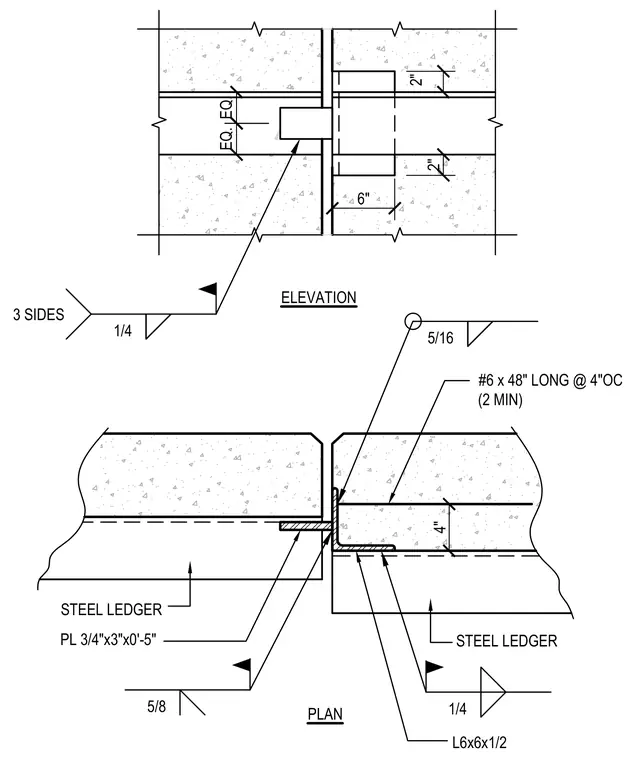

This structural detail shows a panel offset connection utilizing a structural steel ledger angle and embedded plate. An L6x6x1/2 angle supports the assembly with a 3/4 inch by 3 inch by 5 inch steel plate welded to the connection. Reinforcement consists of number 6 bars at 48 inches long spaced at 4 inches on center. Welds include quarter-inch fillets on three sides and five-sixteenths welds as indicated.
4" 6" 2" EQ. EQ. ELEVATION PLAN 1/4 3 SIDES 5/16 #6 x 48" LONG @ 4"OC (2 MIN) STEEL LEDGER STEEL LEDGER PL 3/4"x3"x0'-5" L6x6x1/2 5/8 1/4 2"
