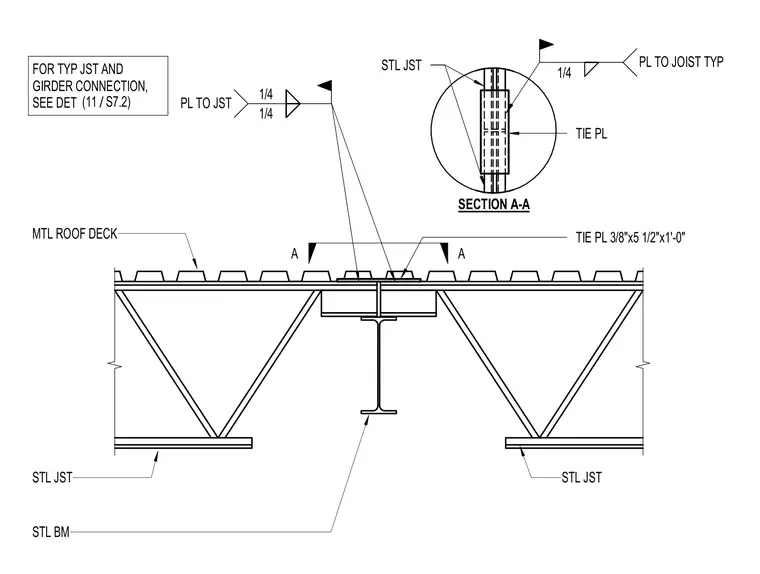

Two steel joists bear on a steel beam supporting a metal roof deck above. A tie plate measuring three-eighths by five and one-half inches by one foot zero inches spans across the top chords of the steel joists. The tie plate is secured to the steel joists with one-quarter-inch fillet welds typical.
A A MTL ROOF DECK STL BM FOR TYP JST AND GIRDER CONNECTION, SEE DET STL JST STL JST / (11 S7.2) TIE PL 3/8"x5 1/2"x1'-0" SECTION A-A TIE PL STL JST 1/4 1/4 PL TO JST 1/4 PL TO JOIST TYP
