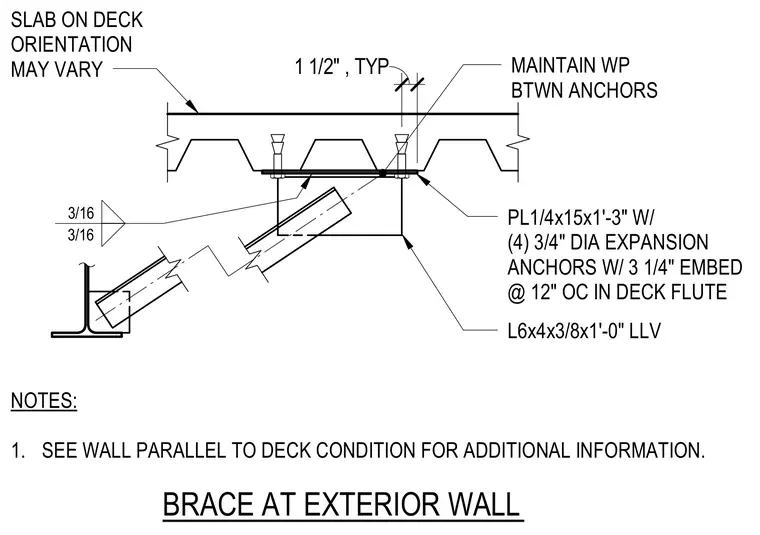

An angle brace connects to a structural plate secured underneath a concrete slab on metal deck. The assembly features a 1/4-inch by 15-inch by 1 foot 3-inch plate fastened into the deck flute with four 3/4-inch diameter expansion anchors having a 3 1/4-inch embedment at 12 inches on center. A 6x4x3/8-inch by 1-foot-long angle connects the brace to the plate with 3/16-inch fillet welds on both sides. A waterproofing sealant or barrier is maintained between the anchors.
BRACE AT EXTERIOR WALL MAINTAIN WP BTWN ANCHORS NOTES: 1. SEE WALL PARALLEL TO DECK CONDITION FOR ADDITIONAL INFORMATION. 1 1/2" , TYP PL1/4x15x1'-3" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" EMBED @ 12" OC IN DECK FLUTE L6x4x3/8x1'-0" LLV SLAB ON DECK ORIENTATION MAY VARY 3/16 3/16
