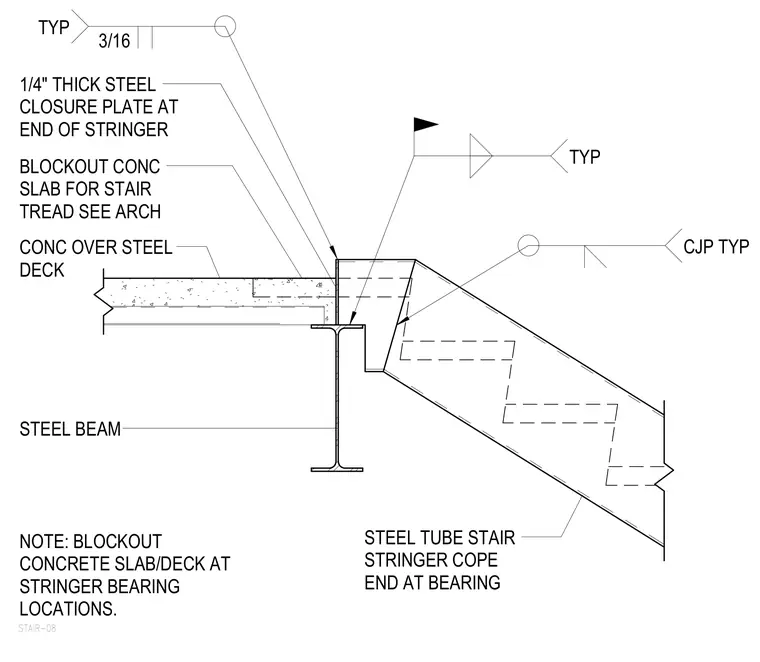

A steel tube stair stringer with a coped end bears directly onto a supporting steel beam flange. A one-quarter-inch-thick steel closure plate is welded to the end of the stringer with a three-sixteenth-inch typical complete joint penetration weld. The concrete slab over metal deck features a blockout at the stair stringer bearing location, coordinated with architectural drawings.
STEEL TUBE STAIR STRINGER COPE END AT BEARING NOTE: BLOCKOUT CONCRETE SLAB/DECK AT STRINGER BEARING LOCATIONS. STEEL BEAM CONC OVER STEEL DECK 1/4" THICK STEEL CLOSURE PLATE AT END OF STRINGER BLOCKOUT CONC SLAB FOR STAIR TREAD SEE ARCH STAIR-08 3/16 TYP CJP TYP TYP
