Typical Coupling Beam Type 1 Section

Elements

About this detail

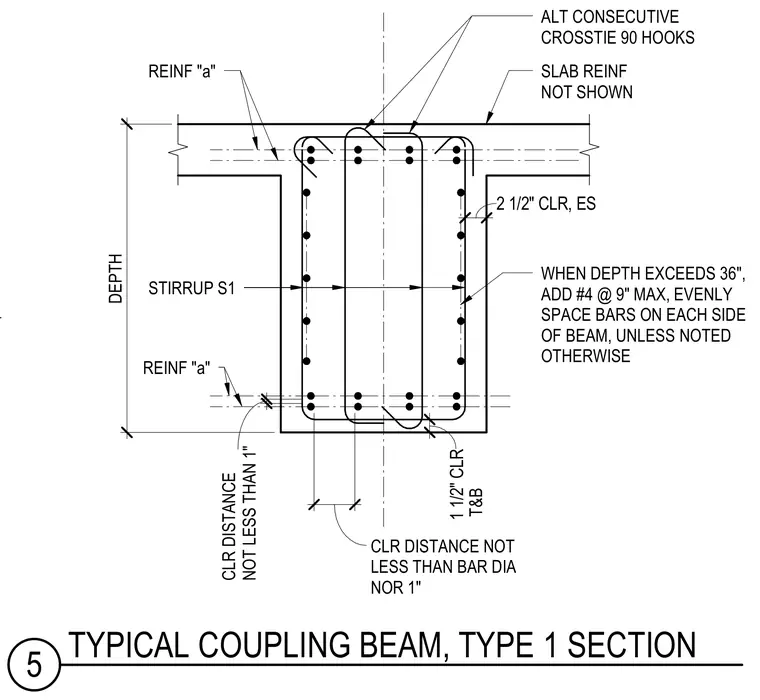

This concrete coupling beam cross-section details the longitudinal reinforcement, stirrups, and alternating consecutive crossties with ninety-degree hooks. Top and bottom reinforcement layers require one and one-half inches of clear cover, with two and one-half inches clear on each side. When the beam depth exceeds thirty-six inches, additional number four bars are spaced at nine inches maximum on each side. Clear distance between bars must not be less than the bar diameter nor one inch.
