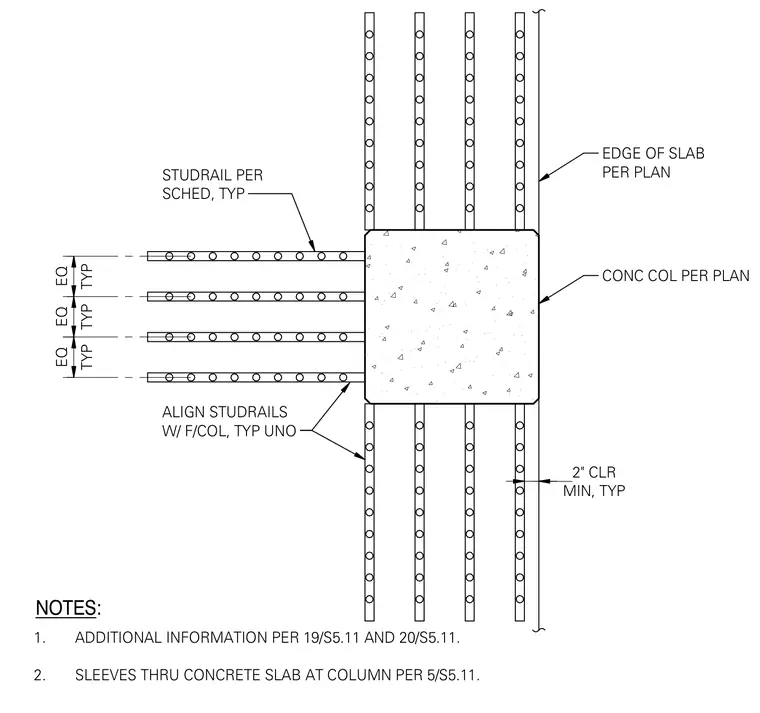

Studrails are arranged around a square concrete column to resist punching shear in a concrete slab. Studrails are spaced equally and aligned with the column faces unless noted otherwise. A minimum clear distance is maintained at the slab edge, and additional detailing refers to related structural sheets for sleeves and further information.
EDGE OF SLAB PER PLAN CONC COL PER PLAN ALIGN STUDRAILS W/ F/COL, TYP UNO TYP EQ TYP EQ TYP EQ STUDRAIL PER SCHED, TYP NOTES: 1. ADDITIONAL INFORMATION PER 19/S5.11 AND 20/S5.11. 2. SLEEVES THRU CONCRETE SLAB AT COLUMN PER 5/S5.11. MIN, TYP 2" CLR
