Structural · S-FP5GT

Typical Concrete Column Reinforcing Configurations and Pilaster Detail

Materials

Concrete Reinforced Concrete

Elements

Columns Walls Reinforcing

Connections

Rebar Splice / Development

About this detail

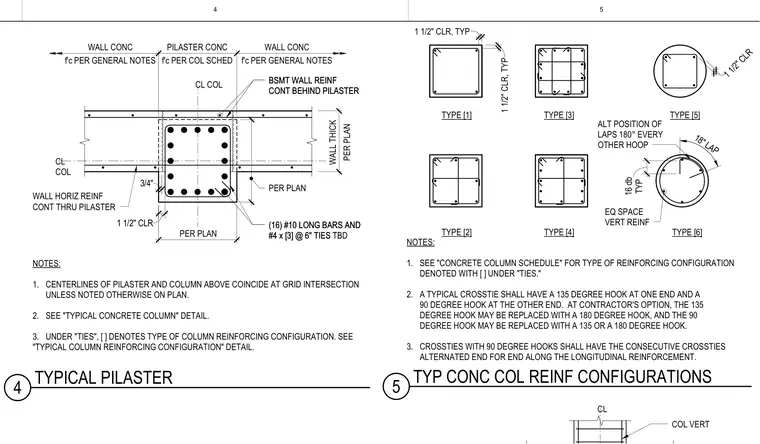

Typical concrete column reinforcing configurations include square and round column ties, lap splices, and crosstie hook requirements. A concrete pilaster integrates into a basement wall with continuous horizontal reinforcing continuing through and behind the pilaster.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
