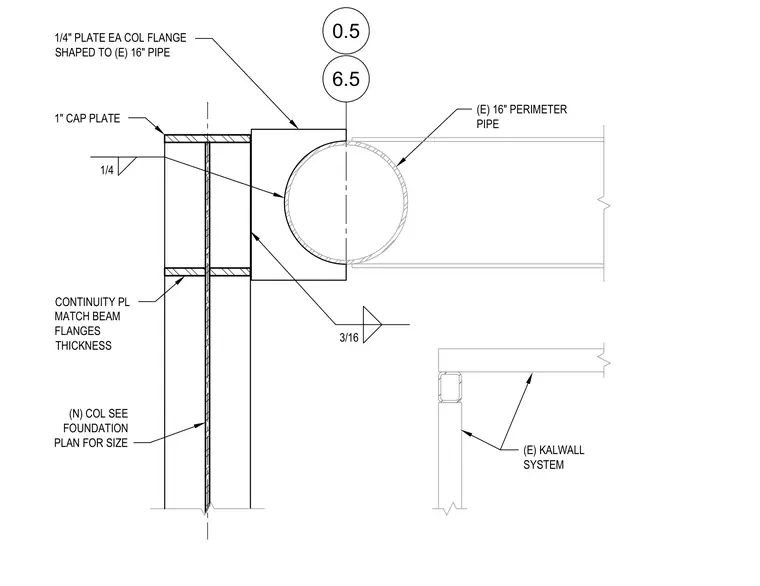

A new steel column sized per foundation plan supports an existing 16-inch perimeter pipe at the main roof level. A 1-inch thick cap plate tops the column, welded to the pipe with a 1/4-inch fillet weld. Continuity plates matching the beam flange thickness are welded inside the column flanges with 3/16-inch fillet welds. A 1/4-inch plate shaped to fit the exterior of the 16-inch pipe is welded to each column flange. An existing Kalwall system ties into the perimeter assembly below.
6.5 0.5 (E) KALWALL SYSTEM (E) 16" PERIMETER PIPE (N) COL SEE FOUNDATION PLAN FOR SIZE 1/4 1" CAP PLATE 3/16 CONTINUITY PL MATCH BEAM FLANGES THICKNESS 1/4" PLATE EA COL FLANGE SHAPED TO (E) 16" PIPE
