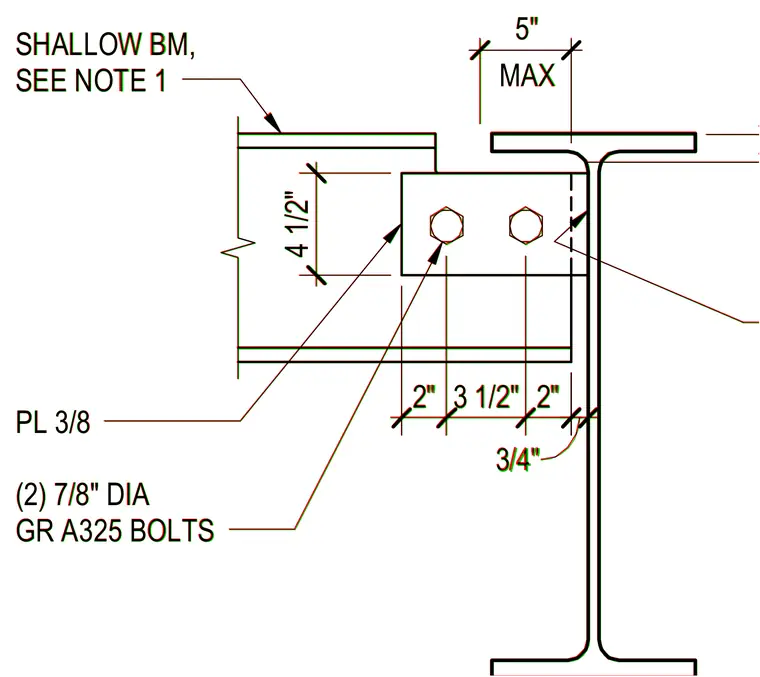

A shallow beam connects to a supporting structural steel member using a 3/8-inch plate secured with two 7/8-inch diameter Grade A325 bolts. The connection maintains a maximum 5-inch clearance from the support flange and provides specific edge and spacing dimensions for bolt placement.
4 1/2" 2" 3 1/2" 2" PL 3/8 (2) 7/8" DIA GR A325 BOLTS SHALLOW BM, SEE NOTE 1 3/4" 4" 5" MAX 4 1/2" 2" 3 1/2" 2" PL 3/8 (2) 7/8" DIA GR A325 BOLTS SHALLOW BM, SEE NOTE 1 3/4" 4" 5" MAX
