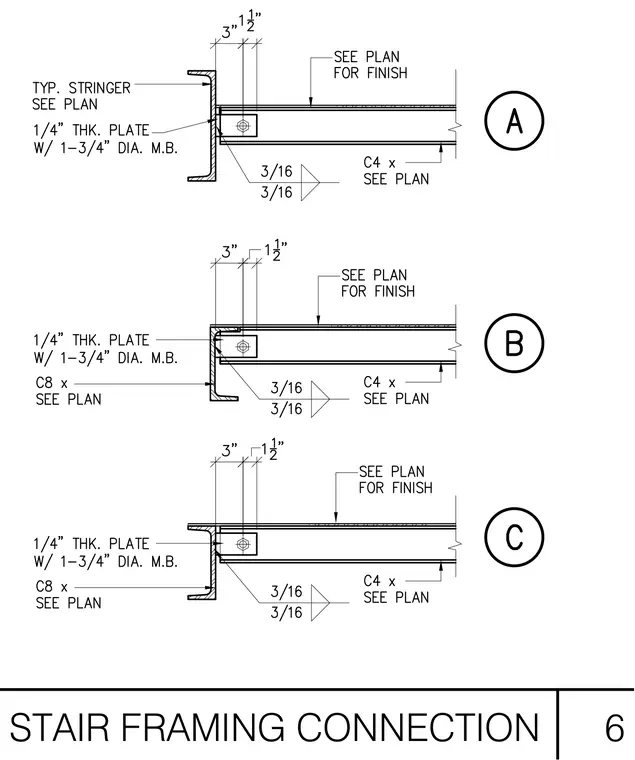

Three variations of stair framing connections join channel stringers to supporting members using a quarter-inch thick plate with one three-quarter-inch diameter machine bolt. The connection details feature C4 channel framing welded with three-sixteenth-inch fillet welds, along with C8 channels where specified per plan. Finishes and specific member sizes are coordinated per the architectural and structural plans.
