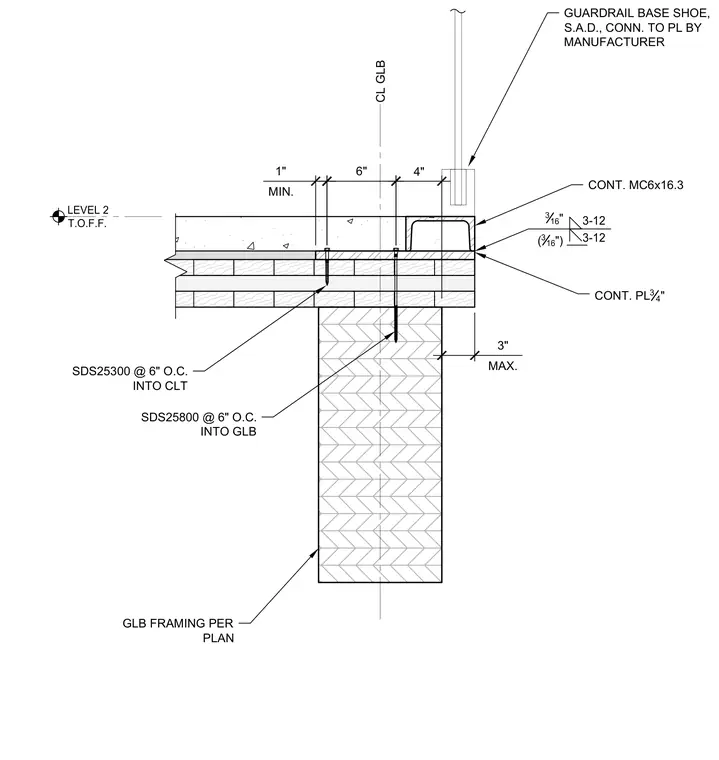

A continuous glass guardrail base shoe sits atop a continuous MC6x16.3 steel channel, which is welded with three-sixteenth-inch fillet welds at twelve inches on center to a continuous three-quarter-inch steel plate. The steel plate assembly bears on a mass timber floor system consisting of cross-laminated timber panels supported by glulam framing. The assembly is secured using SDS25300 structural screws at six inches on center into the cross-laminated timber and SDS25800 structural screws at six inches on center into the glulam beam. The glulam framing is positioned per plan below the Level 2 top of finished floor.
CONT. PL 3 4 " GUARDRAIL BASE SHOE, S.A.D., CONN. TO PL BY MANUFACTURER CONT. MC6x16.3 ( 3 16 ") 3-12 316 " 3-12 1" MIN. 6" 4" SDS25800 @ 6" O.C. INTO GLB SDS25300 @ 6" O.C. INTO CLT 3" MAX. GLB FRAMING PER PLAN CL GLB LEVEL 2 T.O.F.F.
