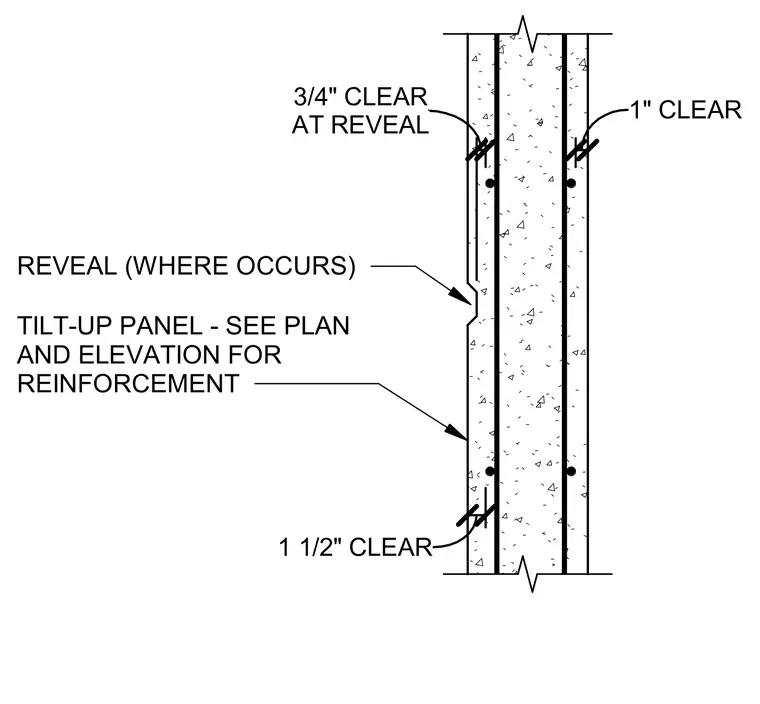

Reinforcement within a tilt-up concrete wall panel requires a three-quarter-inch clear cover at the reveal and a one-inch clear cover at the opposite face. A one-and-a-half-inch clear cover is specified for reinforcement at the base or standard panel section. The panel includes a recessed reveal where indicated, with reinforcement placement to be verified per the project plan and elevation drawings.
