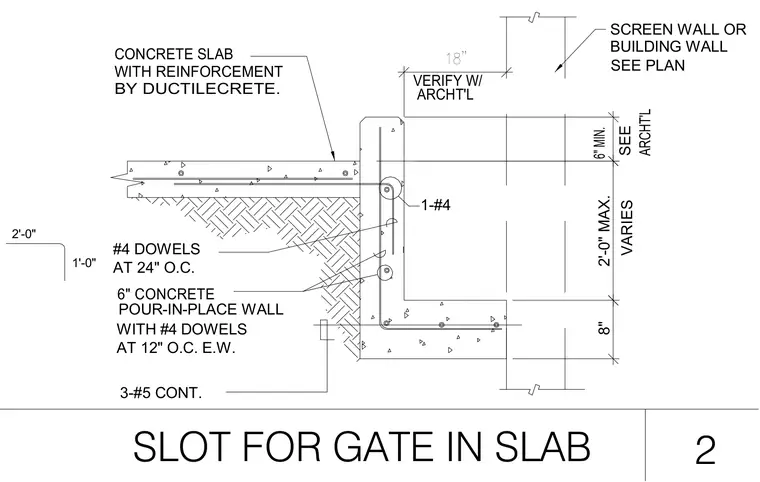

A recess slot for a gate is formed within a concrete slab adjacent to a six-inch pour-in-place concrete wall. The assembly features a two-foot maximum width variable slab opening adjacent to a screen wall or building wall as verified with the architect. Reinforcement includes number four dowels placed at twenty-four inches on center, three number four continuous bars, and number four dowels at twelve inches on center each way within the wall. An eight-inch footing portion extends below the wall with three number five continuous reinforcing bars.
SLOT FOR GATE IN SLAB 2 CONCRETE SLAB WITH REINFORCEMENT BY DUCTILECRETE. 2'-0" MAX. WITH #4 DOWELS 3-#5 CONT. AT 12" O.C. E.W. AT 24" O.C. #4 DOWELS POUR-IN-PLACE WALL 1'-0" 18" 2'-0" 1-#4 ARCHT'L VERIFY W/ SEE PLAN SCREEN WALL OR BUILDING WALL VARIES 6" CONCRETE 8" ARCHT'L SEE 6" MIN.
