Structural · S-FNK7Z

Brick Support at Curtain Wall and Steel Tube Framing

Materials

Steel Cold-formed Steel Timber / Wood Brick Metal (misc.)

Elements

Beams Walls Windows Curtain Walls Facades / Cladding Stairs Arches Insulation Connections / Plates

About this detail

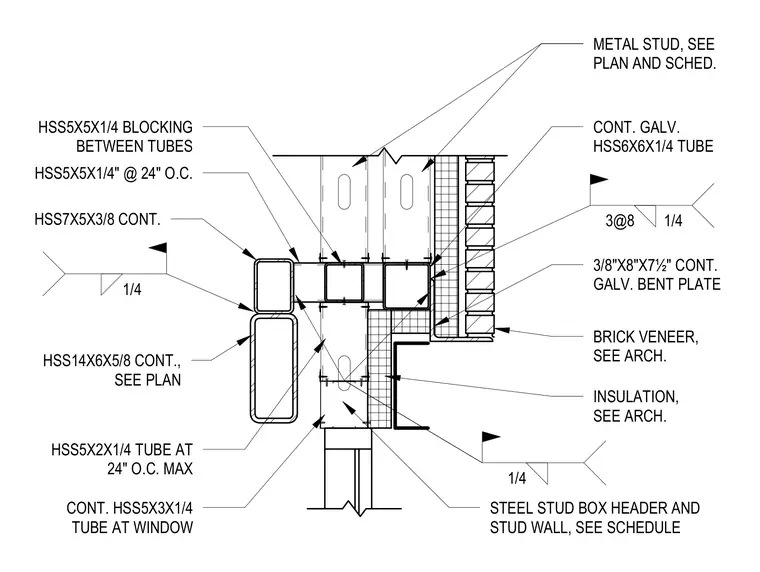

Structural steel support assembly for a brick veneer and curtain wall system at a stairwell. A continuous HSS14x6x5/8 tube spans as detailed per plan, supporting a series of intersecting HSS members including an HSS7x5x3/8 continuous tube and HSS5x5x1/4 blocking tubes spaced at twenty-four inches on center. A continuous galvanized HSS6x6x1/4 tube receives a three-eighths by eight by seven-and-a-half-inch continuous galvanized bent plate welded with quarter-inch fillet welds and a three-at-eight weld pattern to support the brick veneer. Additional framing includes continuous HSS5x3x1/4 tubes at the window and HSS5x2x1/4 tubes spaced at twenty-four inches on center maximum. Metal stud framing, steel stud box headers, insulation, and brick veneer are coordinated with architectural drawings and schedules.
