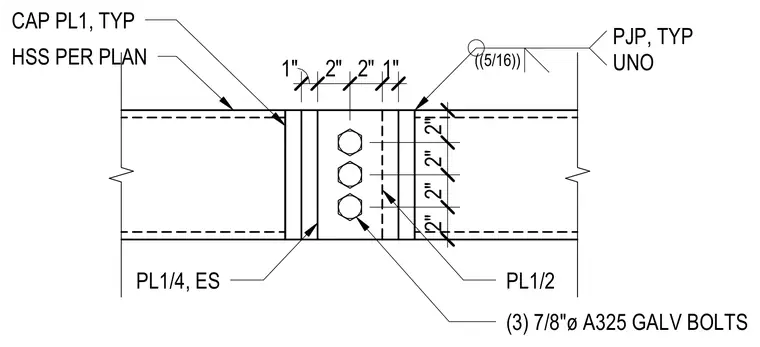

This structural steel connection joins aligned hollow structural section members using a half-inch thick plate and three seven-eighths-inch diameter ASTM A325 galvanized bolts. A one-quarter-inch plate on each side and a one-inch thick cap plate complete the joint assembly. The components are secured with typical partial joint penetration welds unless noted otherwise, featuring five-sixteenth-inch fillet welds where specified. Bolt spacing is detailed with two-inch increments between fasteners and one-inch edge distances.
1" 2" 2" 1" (3) 7/8"ø A325 GALV BOLTS HSS PER PLAN PL1/4, ES PL1/2 CAP PL1, TYP PJP, TYP UNO ((5/16)) 2" 2" 2" 2"
