A pipe penetrates the concrete foundation wall through a sleeve sized to maintain a 1-inch clearance all around, reinforced above and below with one number 5 bar spanning twenty-four inches. Footings and grade beams prohibit pipe penetrations directly through them, requiring thickened footing zones when pipes pass close to the bottom. The steel column sits in a column socket surrounded by fiber board, set within a concrete slab featuring control or construction joints.

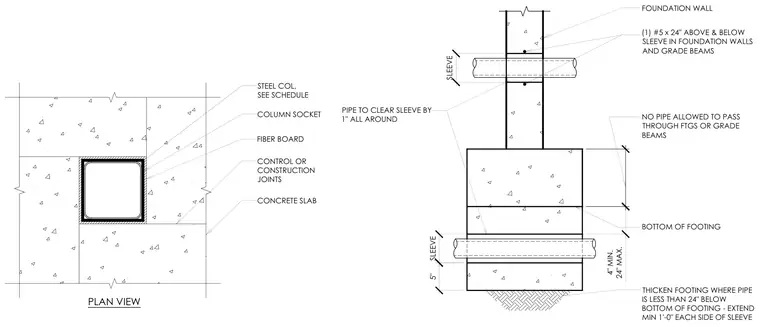

PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE 5" SLEEVE 4" MIN. 24" MAX. SLEEVE PLAN VIEW FIBER BOARD COLUMN SOCKET STEEL COL, SEE SCHEDULE CONTROL OR CONSTRUCTION JOINTS CONCRETE SLAB
