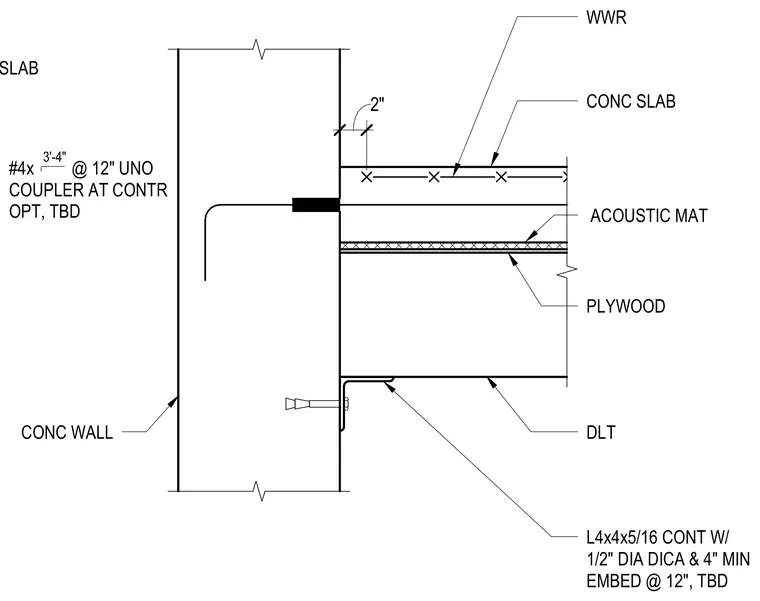

A concrete slab with welded wire reinforcement bears over an acoustic mat and plywood layer supported by a dowel laminated timber floor assembly. The timber floor connects to the concrete wall via a continuous L4x4x5/16 steel angle anchored with half-inch diameter anchors at twelve inches on center with a four-inch minimum embedment. Reinforcing dowels span from the concrete wall into the slab using couplers at control joints as needed.
CONC SLAB ACOUSTIC MAT WWR CONC WALL L4x4x5/16 CONT W/ 1/2" DIA DICA & 4" MIN EMBED @ 12", TBD PLYWOOD 2" #4x @ 12" UNO COUPLER AT CONTR OPT, TBD 3'-4" DLT CONC SLAB
