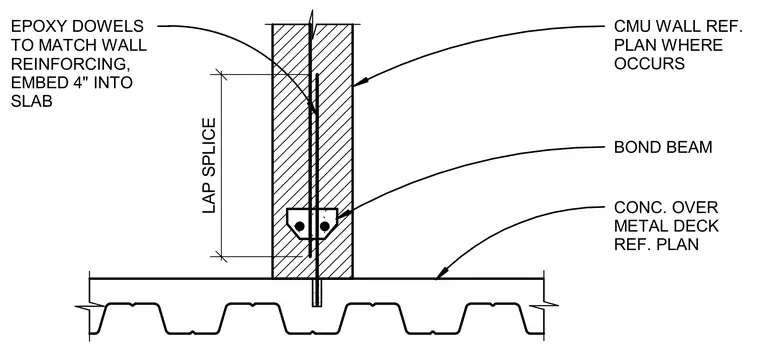

A concrete masonry unit wall is anchored to a concrete slab over metal deck with epoxy dowels that match the wall reinforcing and embed four inches into the slab. A bond beam is integrated into the wall assembly where the lap splice occurs, referenced from the structural plan.
BOND BEAM EPOXY DOWELS TO MATCH WALL REINFORCING, EMBED 4" INTO SLAB CMU WALL REF. PLAN WHERE OCCURS LAP SPLICE CONC. OVER METAL DECK REF. PLAN
