This structural plan detail outlines the reinforcement layout for pile caps supported by vertical piles with T-heads. Transverse and longitudinal pile cap bars are aligned directly above the pile and adjacent to the outside vertical pile bar. A three-inch vertical center-to-center spacing is maintained between parallel reinforcing bars. T-heads are provided where required per the structural details sheet, and the total bar count is determined by the specific pile cap schedule.

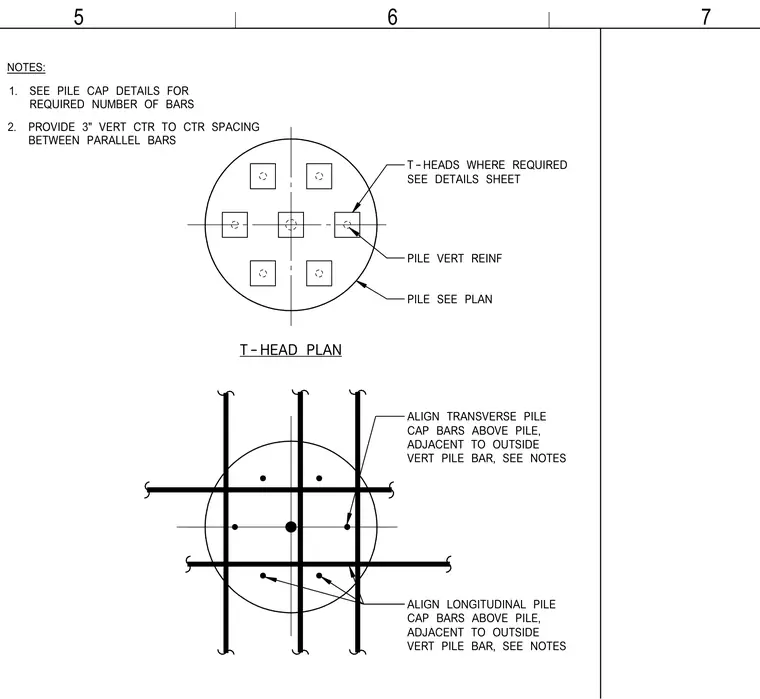

T-HEAD PLAN SEE PILE CAP DETAILS FOR REQUIRED NUMBER OF BARS NOTES: 1. PROVIDE 3" VERT CTR TO CTR SPACING BETWEEN PARALLEL BARS 2. T-HEADS WHERE REQUIRED SEE DETAILS SHEET PILE VERT REINF PILE SEE PLAN ALIGN TRANSVERSE PILE CAP BARS ABOVE PILE, ADJACENT TO OUTSIDE VERT PILE BAR, SEE NOTES ALIGN LONGITUDINAL PILE CAP BARS ABOVE PILE, ADJACENT TO OUTSIDE VERT PILE BAR, SEE NOTES 7 6 5
