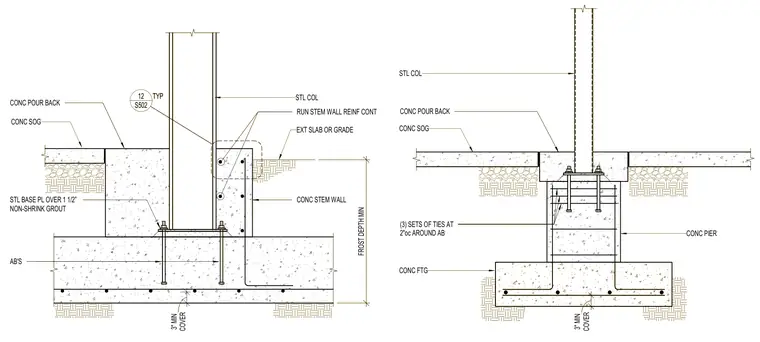

A steel column bears on a steel base plate set over one and a half inches of non-shrink grout atop a concrete pier and footing. Anchor bolts secure the base plate into the foundation. A concrete stem wall and exterior slab on grade adjoin the column base, with three sets of ties spaced at two inches on center placed around the anchor bolts. Continuous stem wall reinforcement maintains a three-inch minimum cover for frost depth protection.
CONC STEM WALL EXT SLAB OR GRADE STL COL STL BASE PL OVER 1 1/2” NON-SHRINK GROUT CONC SOG CONC POUR BACK AB'S RUN STEM WALL REINF CONT COVER 3" MIN FROST DEPTH MIN S502 12 TYP CONC POUR BACK (3) SETS OF TIES AT 2"oc AROUND AB CONC PIER CONC FTG CONC SOG STL COL COVER 3" MIN CONC STEM WALL EXT SLAB OR GRADE STL COL STL BASE PL OVER 1 1/2” NON-SHRINK GROUT CONC SOG CONC POUR BACK AB'S RUN STEM WALL REINF CONT COVER 3" MIN FROST DEPTH MIN S502 12 TYP CONC POUR BACK (3) SETS OF TIES AT 2"oc AROUND AB CONC PIER CONC FTG CONC SOG STL COL COVER 3" MIN
