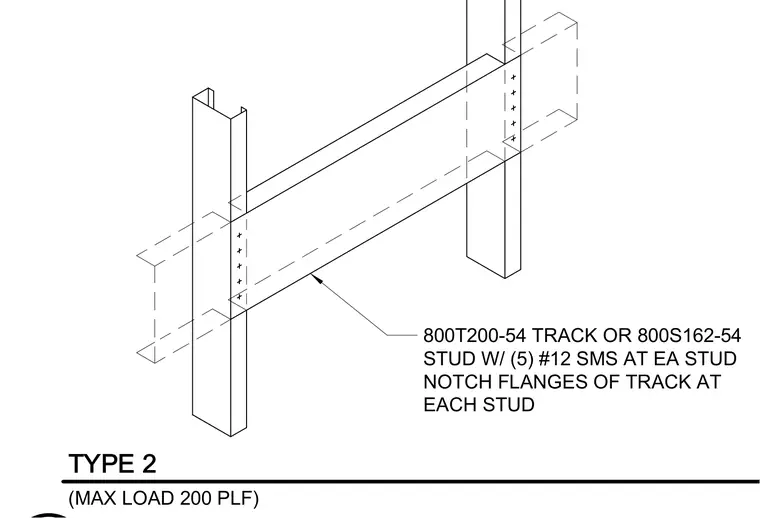

An 800T200-54 track or 800S162-54 stud spans horizontally between vertical cold-formed steel studs to serve as a wall backing plate. The horizontal backing member is notched at its flanges to fit directly against each vertical stud. Five number twelve self-tapping sheet metal screws fasten each notched flange to each vertical stud. This Type 2 connection is rated for a maximum load of two hundred pounds per linear foot.
800T200-54 TRACK OR 800S162-54 STUD W/ (5) #12 SMS AT EA STUD NOTCH FLANGES OF TRACK AT EACH STUD TYPE 2 (MAX LOAD 200 PLF)
