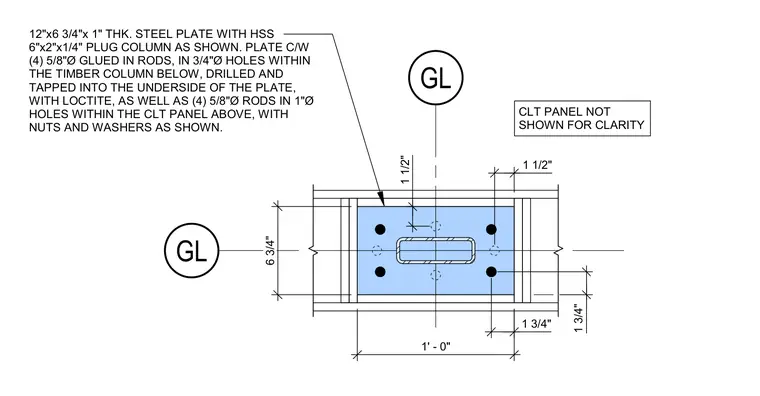

A twelve-inch by six-and-three-quarter-inch by one-inch thick steel plate connects to an HSS six-inch by two-inch by one-quarter-inch plug column. The plate anchors to the timber column below using four five-eighth-inch diameter glued-in rods in three-quarter-inch diameter holes, drilled and tapped into the underside of the plate with thread-locking adhesive. Four additional five-eighth-inch diameter rods in one-inch diameter holes secure the cross-laminated timber panel above using nuts and washers. The cross-laminated timber panel is omitted from the plan view for clarity.
12"x6 3/4"x 1" THK. STEEL PLATE WITH HSS 6"x2"x1/4" PLUG COLUMN AS SHOWN. PLATE C/W (4) 5/8"Ø GLUED IN RODS, IN 3/4"Ø HOLES WITHIN THE TIMBER COLUMN BELOW, DRILLED AND TAPPED INTO THE UNDERSIDE OF THE PLATE, WITH LOCTITE, AS WELL AS (4) 5/8"Ø RODS IN 1"Ø HOLES WITHIN THE CLT PANEL ABOVE, WITH NUTS AND WASHERS AS SHOWN. CLT PANEL NOT SHOWN FOR CLARITY GL GL 6 3/4" 1' - 0" 1 1/2" 1 1/2" 1 3/4" 1 3/4"
