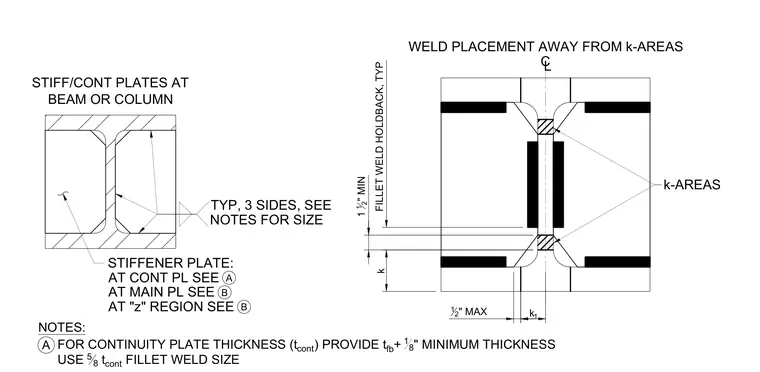

Continuity plates and stiffener plates are welded to a wide-flange steel column with specific detailing requirements near the column web k-area. The continuity plate thickness is sized to the beam flange thickness plus one-eighth inch minimum, with a fillet weld size equal to five-eighths of the continuity plate thickness applied on three sides. Weld placement is kept one and one-half inches minimum away from the column k-areas, maintaining a one-half inch maximum clearance from the k1 dimension line.
FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 18 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE AT "z" REGION SEE A B B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN k 1 12 " MIN FILLET WELD HOLDBACK, TYP WELD PLACEMENT AWAY FROM k-AREAS 12 " MAX k-AREAS CL k 1
