A 3/8-inch thick gusset plate connects to a column sized per schedule with a 1/4-inch fillet weld top and bottom. The brace member per elevation attaches to the gusset plate using two bolts spaced at 3 inches on center. A work point (WP) is established for alignment, maintaining a 1 1/2-inch maximum clearance from the column face and a 1-inch minimum typical clearance.

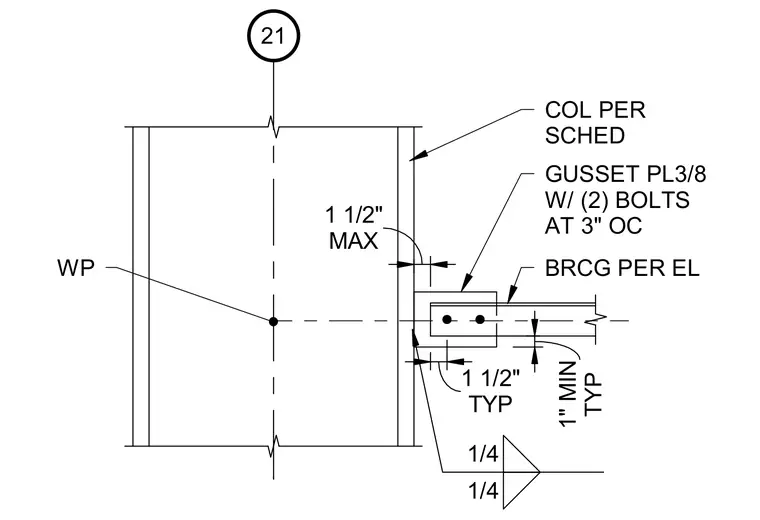

21 MAX 1 1/2" 1/4 1/4 GUSSET PL3/8 W/ (2) BOLTS AT 3" OC BRCG PER EL TYP 1 1/2" TYP 1" MIN COL PER SCHED WP
