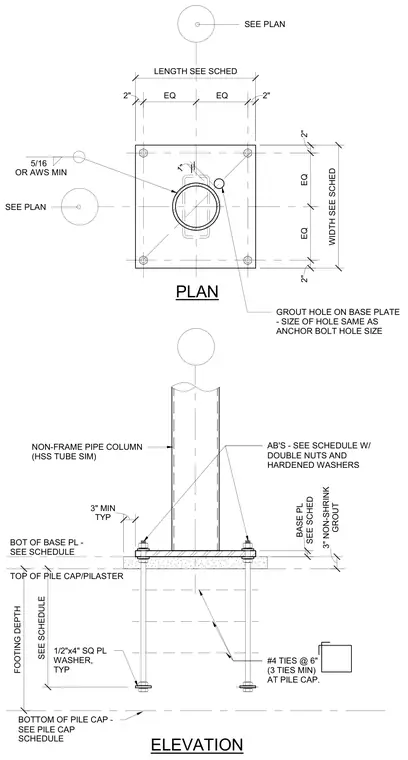

A non-frame pipe column or hollow structural section tube connects to a concrete pile cap or pilaster through a steel base plate welded with a five-sixteenths inch fillet weld or American Welding Society minimum. Four anchor bolts with double nuts and hardened washers secure the base plate, anchored with square plate washers embedded in the footing. A three-inch layer of non-shrink grout sits beneath the base plate, which includes a grout hole equal in size to the anchor bolt hole. Number four ties spaced at six inches with a minimum of three ties reinforce the concrete pile cap.
PLAN NON-FRAME PIPE COLUMN (HSS TUBE SIM) OR AWS MIN GROUT HOLE ON BASE PLATE - SIZE OF HOLE SAME AS ANCHOR BOLT HOLE SIZE 5/16 BOT OF BASE PL - SEE SCHEDULE TOP OF PILE CAP/PILASTER AB'S - SEE SCHEDULE W/ DOUBLE NUTS AND HARDENED WASHERS ELEVATION BOTTOM OF PILE CAP - SEE PILE CAP SCHEDULE 1/2"x4" SQ PL WASHER, TYP #4 TIES @ 6" (3 TIES MIN) AT PILE CAP. TYP 3" MIN GROUT 3" NON-SHRINK SEE SCHED BASE PL FOOTING DEPTH 2" EQ EQ 2" LENGTH SEE SCHED 2" EQ EQ 2" WIDTH SEE SCHED 1" SEE SCHEDULE SEE PLAN SEE PLAN
