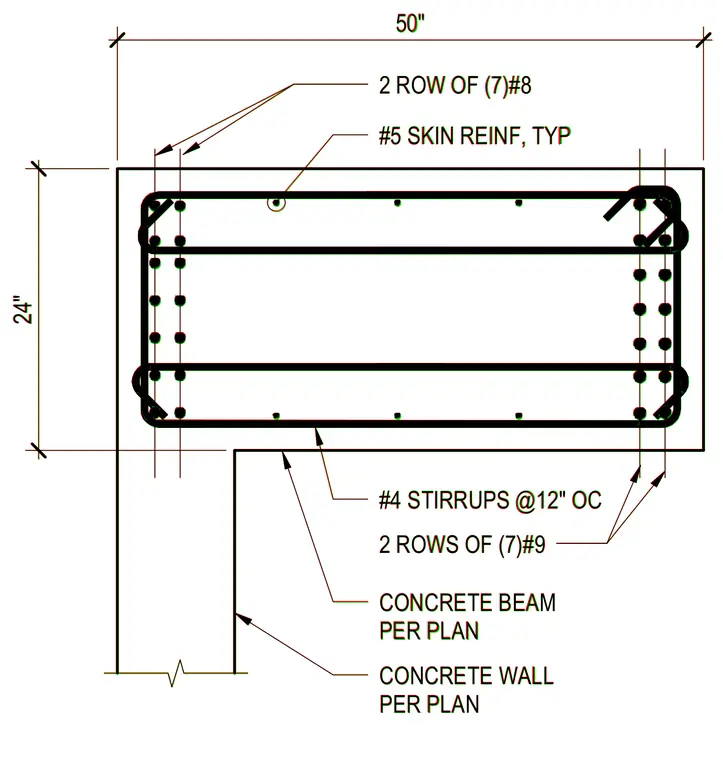

A concrete beam frames into a concrete wall with specific reinforcing bar layouts. The beam measures fifty inches by twenty-four inches with sizing defined per plan. Two rows of seven number eight bars are placed at the top, and two rows of seven number nine bars are placed at the bottom. Number four stirrups are spaced at twelve inches on center, supplemented by number five skin reinforcement typically placed along the sides.
50" 24" 2 ROWS OF (7)#9 CONCRETE BEAM PER PLAN 2 ROW OF (7)#8 CONCRETE WALL PER PLAN #5 SKIN REINF, TYP #4 STIRRUPS @12" OC 50" 24" 2 ROWS OF (7)#9 CONCRETE BEAM PER PLAN 2 ROW OF (7)#8 CONCRETE WALL PER PLAN #5 SKIN REINF, TYP #4 STIRRUPS @12" OC
