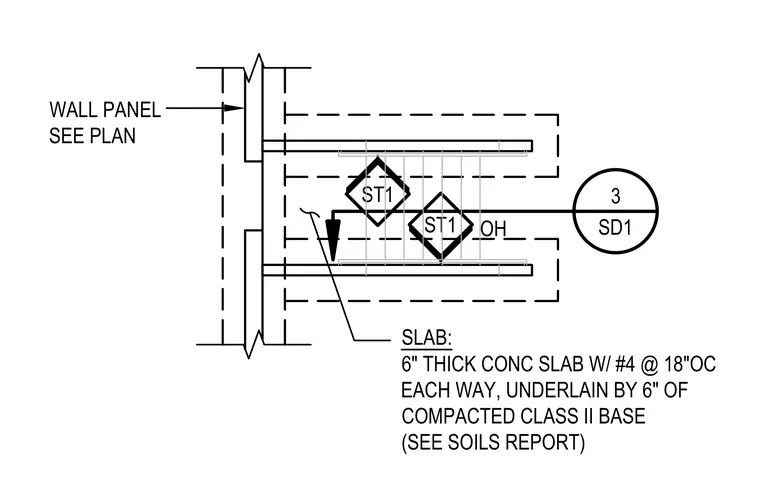

The six-inch thick concrete slab is reinforced with number four bars spaced at eighteen inches on center each way. The slab is underlain by six inches of compacted Class II base per the soils report. The adjacent wall panel is located per plan.
SLAB: 6" THICK CONC SLAB W/ #4 @ 18"OC EACH WAY, UNDERLAIN BY 6" OF COMPACTED CLASS II BASE (SEE SOILS REPORT) ST1 ST1 OH 3 SD1 WALL PANEL SEE PLAN
