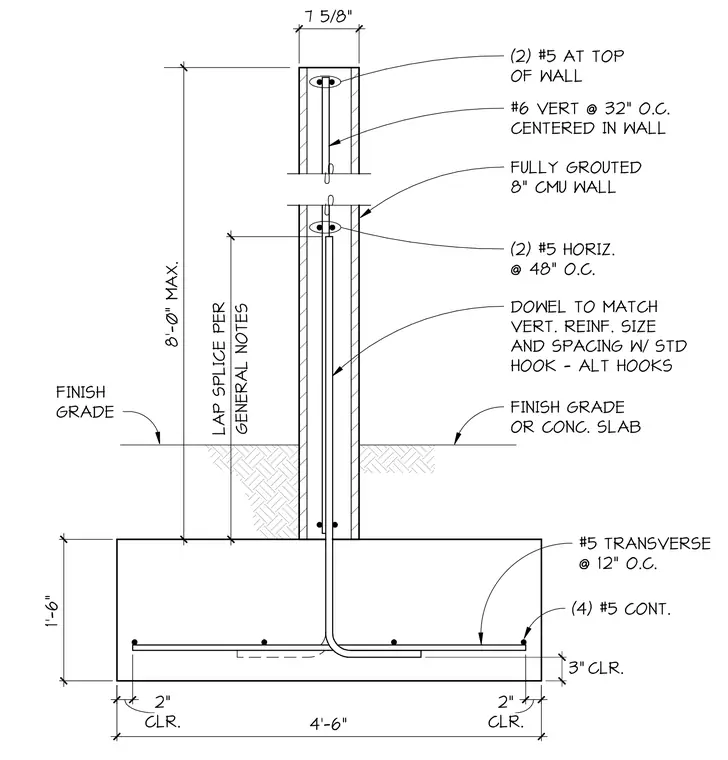

An 8-inch fully grouted concrete masonry unit screen wall extends up to 8 feet maximum above finish grade or a concrete slab. The wall is reinforced with number 6 vertical bars spaced at 32 inches on center centered in the wall, complemented by two number 5 horizontal bars at 48 inches on center and two number 5 bars at the top of the wall. Vertical dowels matching the wall reinforcement size and spacing feature standard alternate hooks and extend into the foundation. The concrete footing measures 4 feet 6 inches wide by 1 foot 6 inches deep, reinforced with four continuous number 5 bars and number 5 transverse bars at 12 inches on center with specified clearances.
1'-6" 4'-6" CLR. 3" GENERAL NOTES LAP SPLICE PER FINISH GRADE (2) #5 HORIZ. @ 48" O.C. (2) #5 AT TOP OF WALL FULLY GROUTED 8" CMU WALL #6 VERT @ 32" O.C. CENTERED IN WALL DOWEL TO MATCH VERT. REINF. SIZE AND SPACING W/ STD HOOK - ALT HOOKS FINISH GRADE OR CONC. SLAB (4) #5 CONT. CLR. 2" CLR. 2" #5 TRANSVERSE @ 12" O.C. 8'-0" MAX. 7 5/8"
