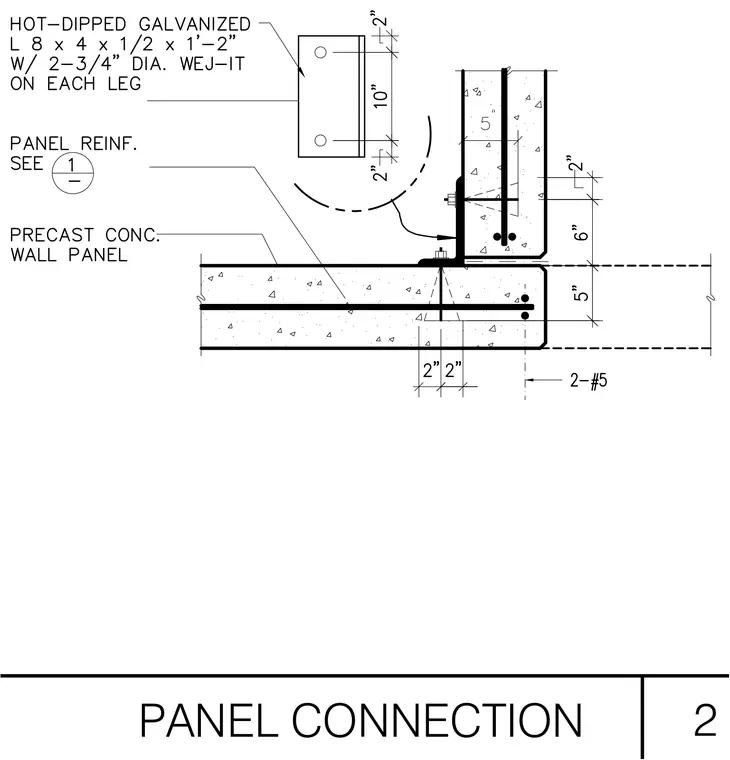

Precast concrete wall panels connect using a hot-dipped galvanized angle measuring 8x4x1/2 by 1 foot 2 inches. The angle secures to the substrate with two 3/4-inch diameter Wej-It expansion anchors on each leg. Panel reinforcement is detailed on a separate drawing referenced in the callout. Two number 5 reinforcing bars provide concrete reinforcement within the five-inch thick precast concrete wall panels.
