A buckling-restrained brace connects to a structural steel column and beam through a gusset plate attached with bolted connections and welded stiffeners. A gusset support plate is detailed with a one-half inch minimum thickness for gusset thicknesses under two inches, and three-quarters inch minimum for greater thicknesses. A doubler plate is provided at the beam web where required by the corebrace connection schedule. Five-sixteenth-inch fillet welds secure the gusset to the stiffener on three sides. Working points are established at the column center and one-half the nominal beam depth from the top.

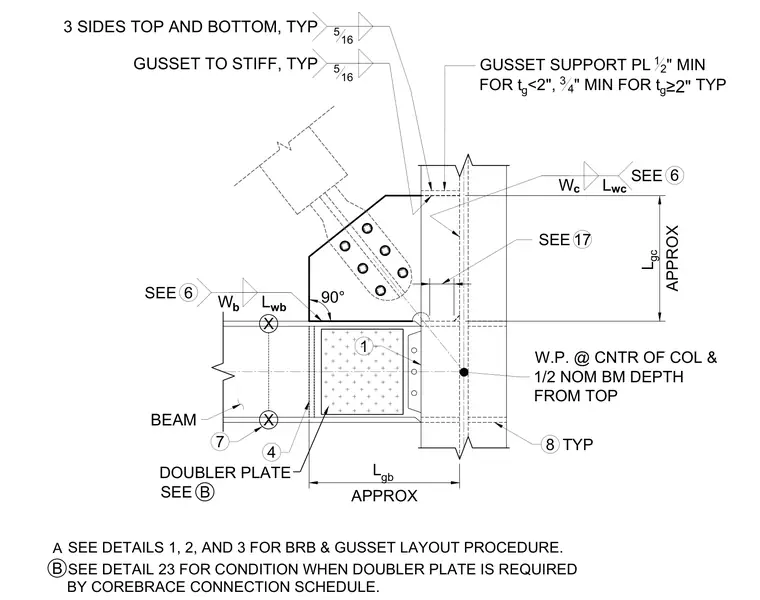

90° W b 6 SEE W.P. @ CNTR OF COL & 1/2 NOM BM DEPTH FROM TOP L gb APPROX BEAM L gc APPROX 4 X X 7 8 TYP GUSSET TO STIFF, TYP 6 SEE 3 SIDES TOP AND BOTTOM, TYP 516 516 W c L wb L wc GUSSET SUPPORT PL 12 " MIN FOR t g <2", 3 4 " MIN FOR t g ≥2" TYP 1 SEE DETAIL 23 FOR CONDITION WHEN DOUBLER PLATE IS REQUIRED BY COREBRACE CONNECTION SCHEDULE. SEE DETAILS 1, 2, AND 3 FOR BRB & GUSSET LAYOUT PROCEDURE. B DOUBLER PLATE B SEE A 17 SEE
