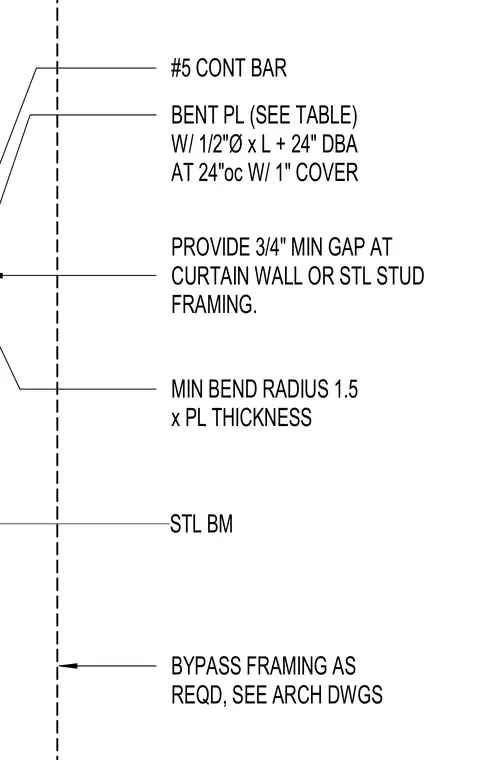

A bent plate detailed per schedule is anchored with one-half inch diameter dowel bars at twenty-four inches on center with one inch of cover. A number five continuous reinforcing bar ties into the assembly near the steel beam. A minimum three-quarter inch gap is provided at the curtain wall or steel stud framing, with bypass framing coordinated per architectural drawings. The bent plate requires a minimum bend radius of one and a half times the plate thickness.
BENT PL (SEE TABLE) W/ 1/2"Ø x L + 24" DBA AT 24"oc W/ 1" COVER STL BM #5 CONT BAR PROVIDE 3/4" MIN GAP AT CURTAIN WALL OR STL STUD FRAMING. BYPASS FRAMING AS REQD, SEE ARCH DWGS MIN BEND RADIUS 1.5 x PL THICKNESS
