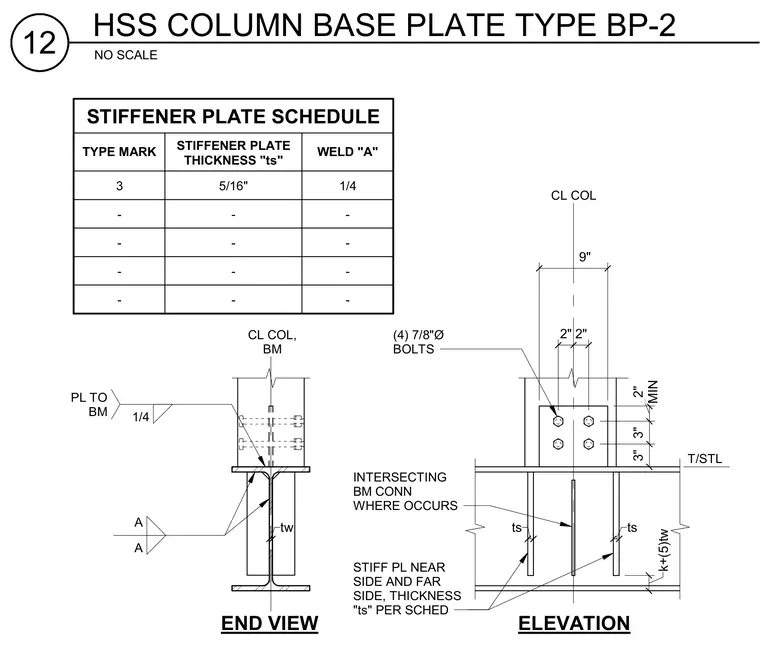

An HSS column connects to a supporting transfer beam using a base plate assembly with stiffener plates near side and far side. Four seven-eighth-inch diameter bolts fasten the connection where intersecting beam connections occur. Stiffener plate thickness ts is sized per schedule with a one-quarter-inch fillet weld. Additional plate-to-beam connections are detailed in end view and elevation with specified dimensions.
T/STL STIFFENER PLATE SCHEDULE TYPE MARK STIFFENER PLATE THICKNESS "ts" WELD "A" 3 5/16" 1/4 - - - - - - - - - - - - CL COL (4) 7/8"Ø BOLTS INTERSECTING BM CONN WHERE OCCURS STIFF PL NEAR SIDE AND FAR SIDE, THICKNESS "ts" PER SCHED CL COL, BM A A 1/4 PL TO BM 2" 2" 9" 3" 3" MIN 2" ts ts tw ELEVATION END VIEW k+(5)tw NO SCALE 12 HSS COLUMN BASE PLATE TYPE BP-2
