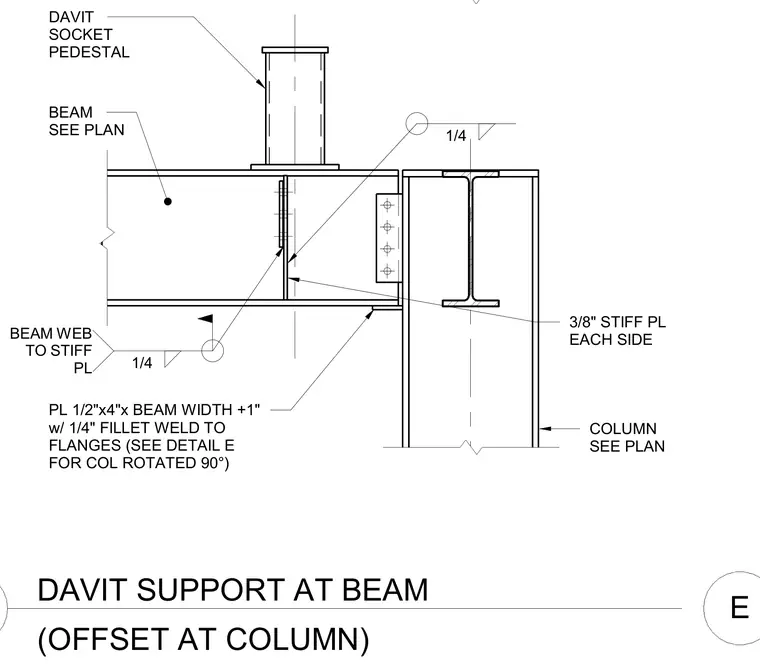

A davit socket pedestal sits atop a steel beam sized per plan, which frames into a structural column. A one-half-inch by four-inch plate, sized to the beam width plus one inch, connects to the beam flanges with one-quarter-inch fillet welds. Three-eighths-inch stiffener plates are welded to each side of the column web with one-quarter-inch fillet welds. The beam web connects to the stiffener plate. An alternative detail is referenced for columns rotated ninety degrees.
E (OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL
