Structural · S-FK8WQ

Pier Width

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

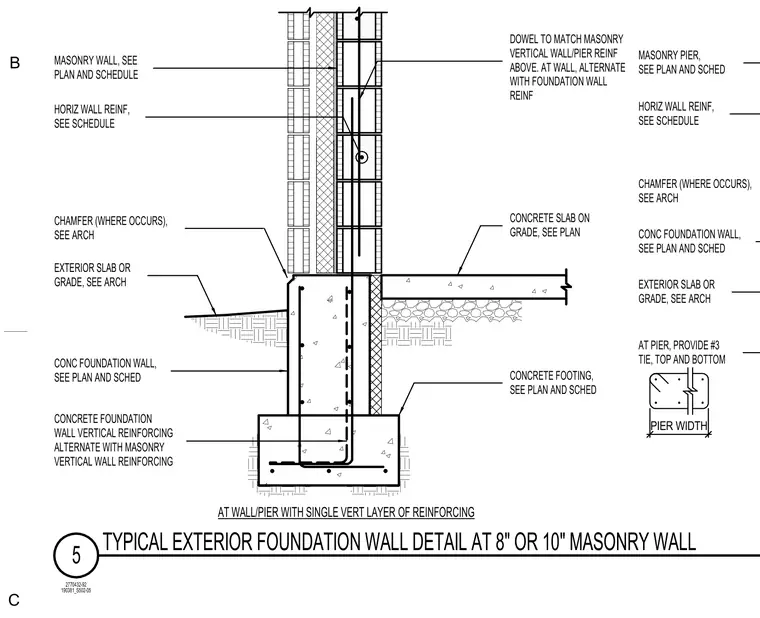

An exterior foundation wall supports an 8-inch or 10-inch masonry wall above a concrete foundation wall and concrete footing. The concrete foundation wall rests on a continuous concrete footing and receives vertical reinforcing dowels that alternate with the masonry vertical wall reinforcing. A concrete slab on grade abuts the foundation wall with an isolation joint, while exterior grade conditions are coordinated per architectural drawings. Horizontal wall reinforcing and vertical dowels tie the concrete and masonry assemblies together, supplemented by number 3 ties at masonry piers as specified.
