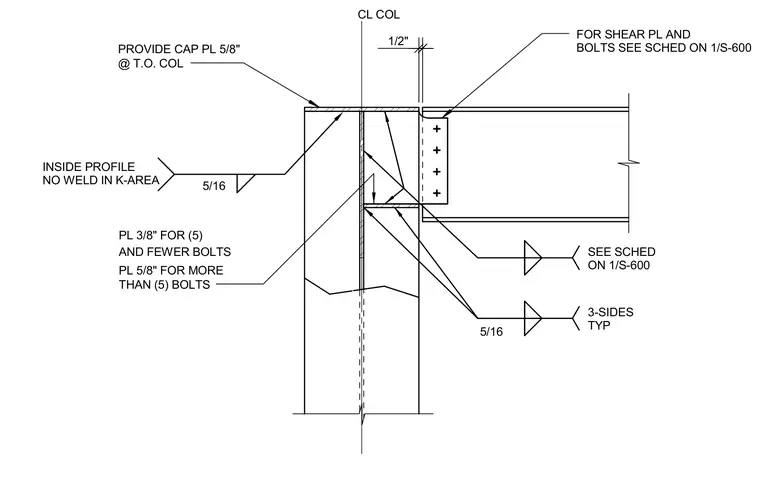

A steel beam frames into the web of a structural column using a bolted shear plate connection, leaving a half-inch clearance at the column face. A five-eighths-inch cap plate is welded to the top of the column with five-sixteenths welds on three sides, noting no weld in the k-area inside the profile. The shear plate thickness is specified as three-eighths inch for five and fewer bolts, and five-eighths inch for more than five bolts, with specific sizes referenced to a schedule.
1/2" 5/16 PROVIDE CAP PL 5/8" @ T.O. COL 3-SIDES THAN (5) BOLTS PL 3/8" FOR (5) AND FEWER BOLTS PL 5/8" FOR MORE 5/16 TYP FOR SHEAR PL AND BOLTS SEE SCHED ON 1/S-600 SEE SCHED ON 1/S-600 CL COL INSIDE PROFILE NO WELD IN K-AREA
