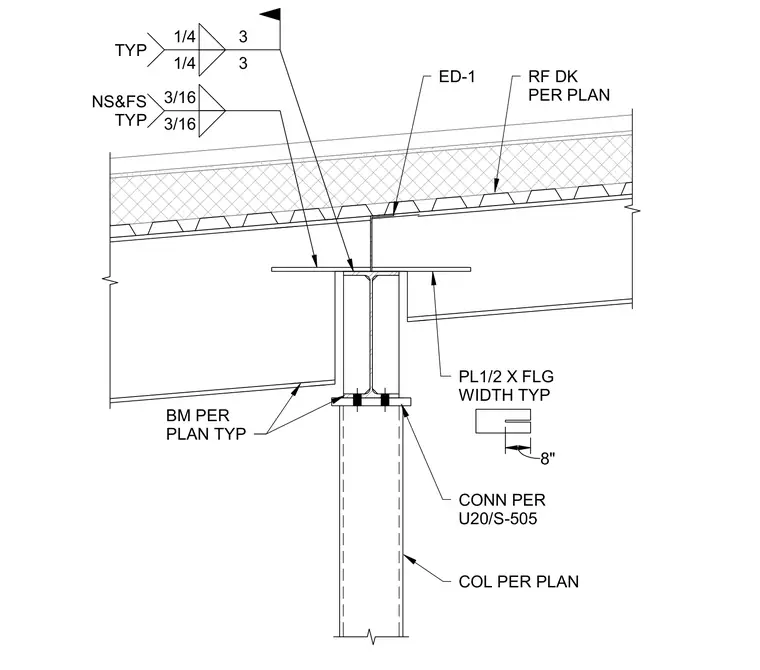

A roof deck per plan bears across a steel column topped with a half-inch plate matched to the flange width. The column connects below using connection type ED-1 per detail reference FU20/S-505. Framing beams per plan intersect the column with typical near-side and far-side three-sixteenths inch fillet welds. A one-quarter inch fillet weld with three-inch segments is applied typically at the connection joints.
BM PER PLAN TYP 3/16 3/16 NS&FS TYP PL1/2 X FLG WIDTH TYP 8" 1/4 3 1/4 3 TYP COL PER PLAN RF DK PER PLAN ED-1 CONN PER FU20/S-505
