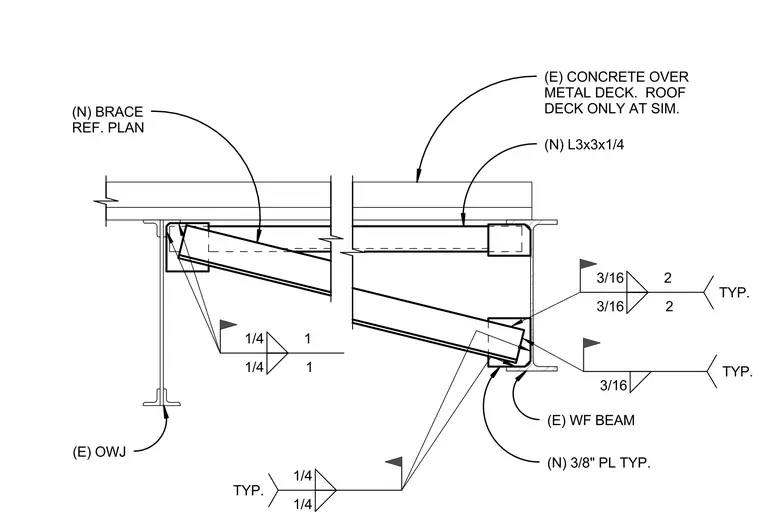

A new angle brace sized as L3x3x1/4 connects between an existing wide-flange beam and an existing open web joist below a concrete over metal deck roof. Connection plates three-eighths of an inch thick are welded typically to the structural members with field welds indicated by flag symbols. The assembly includes fillet welds sized at three-sixteenths of an inch and one-quarter of an inch typically. Roof deck is provided only at similar conditions as referenced on plan.
(N) BRACE REF. PLAN (E) CONCRETE OVER METAL DECK. ROOF DECK ONLY AT SIM. (N) L3x3x1/4 (E) WF BEAM (N) 3/8" PL TYP. (E) OWJ 3/16 2 3/16 2 TYP. 1/4 1/4 TYP. 1/4 1 1/4 1 3/16 TYP.
