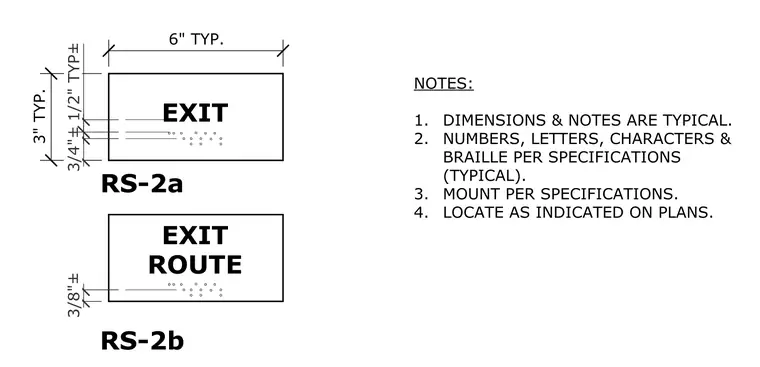

The assembly consists of rectangular exit and exit route signs, designated RS-2a and RS-2b, measuring six inches wide by three inches high. The signage includes tactile characters and Braille, with vertical spacing for text and Braille elements set at approximately three-quarters of an inch and three-eighths of an inch respectively. All dimensions, character styles, and Braille configurations must comply with project specifications. Signs are to be mounted according to specifications and located as indicated on the architectural floor plans.
Text on the drawing
RS-2a 3" TYP. 6" TYP. 1. 2. 3. 4. NOTES: DIMENSIONS & NOTES ARE TYPICAL. NUMBERS, LETTERS, CHARACTERS & BRAILLE PER SPECIFICATIONS (TYPICAL). MOUNT PER SPECIFICATIONS. LOCATE AS INDICATED ON PLANS. EXIT 3/4"± 3/8"± EXIT ROUTE RS-2b 1/2" TYP±
