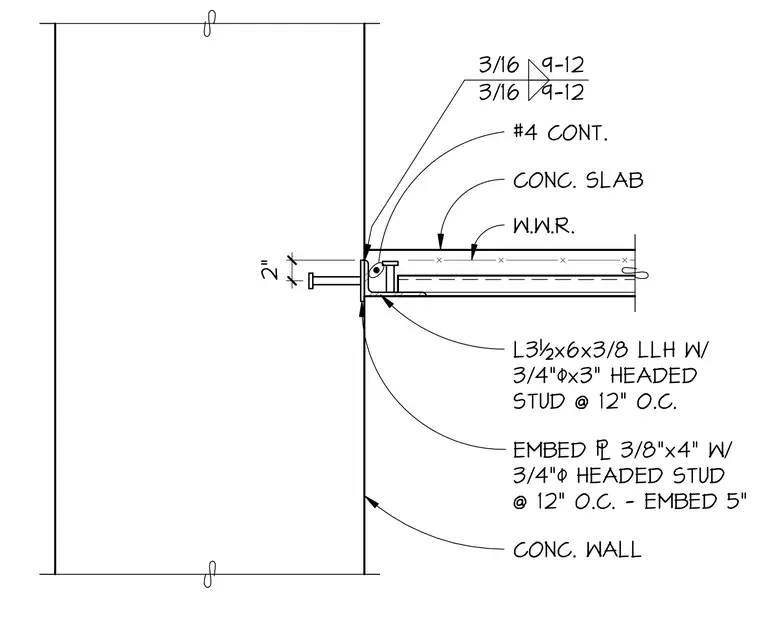

A concrete slab reinforced with welded wire reinforcement and continuous number 4 reinforcing bars bears against a concrete wall. The slab edge is supported by an L3 1/2 x 6 x 3/8 long leg horizontal angle welded with 3/16-inch fillets and equipped with 3/4-inch diameter by 3-inch headed studs at 12 inches on center. This angle bears against a 3/8-inch by 4-inch embed plate featuring 3/4-inch diameter headed studs at 12 inches on center embedded 5 inches into the concrete wall.
2" L3½x6x3/8 LLH W/ 3/4"+x3" HEADED STUD @ 12" O.C. EMBED 3/8"x4" W/ 3/4"+ HEADED STUD @ 12" O.C. - EMBED 5" CONC. WALL CONC. SLAB W.W.R. #4 CONT. 3/16 9-12 3/16 9-12
