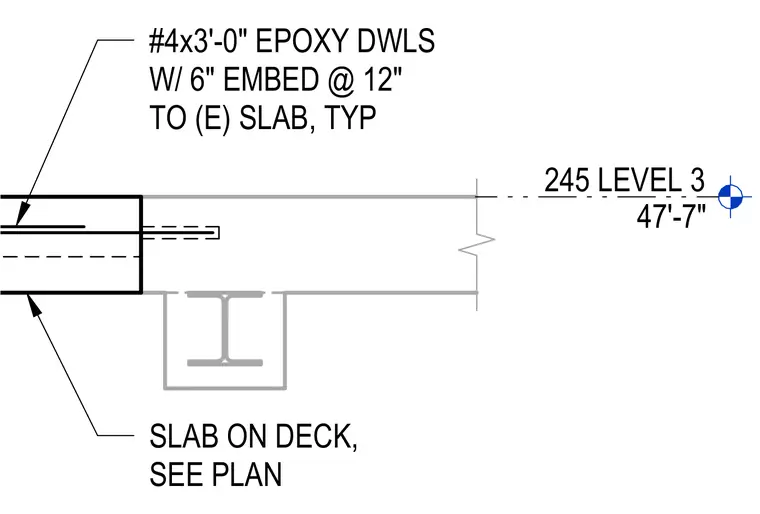

A typical slab on metal deck ties into an existing concrete slab at Level 3, located at elevation 47 feet 7 inches. The connection utilizes number four epoxy dowels measuring three feet in length with a six-inch embedment, spaced at twelve inches on center.
245 LEVEL 3 47'-7" #4x3'-0" EPOXY DWLS W/ 6" EMBED @ 12" TO (E) SLAB, TYP SLAB ON DECK, SEE PLAN
