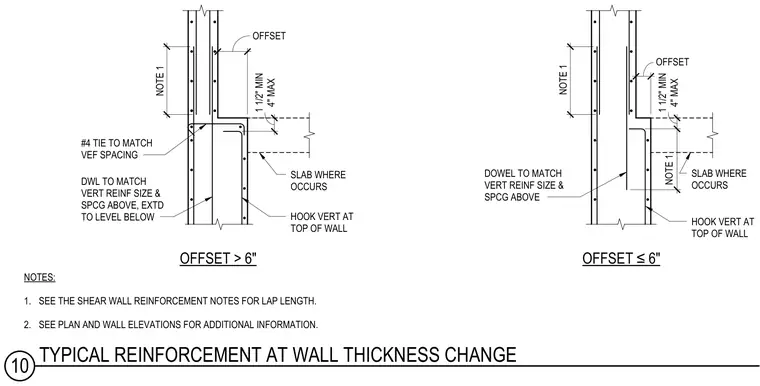

Concrete shear wall vertical reinforcement details at a wall thickness transition for offsets greater than and less than six inches. Vertical dowels match the size and spacing of reinforcement above and extend down to the level below with hooks at the top of the wall. For offsets greater than six inches, number four ties match the vertical reinforcing spacing where slabs occur, while offsets less than six inches utilize continuous lap splices sized per shear wall notes.
#4 TIE TO MATCH VEF SPACING SLAB WHERE OCCURS HOOK VERT AT TOP OF WALL DWL TO MATCH VERT REINF SIZE & SPCG ABOVE, EXTD TO LEVEL BELOW SLAB WHERE OCCURS HOOK VERT AT TOP OF WALL DOWEL TO MATCH VERT REINF SIZE & SPCG ABOVE NOTE 1 OFFSET NOTE 1 NOTE 1 OFFSET 1 1/2" MIN 4" MAX 1 1/2" MIN 4" MAX OFFSET > 6" OFFSET ≤ 6" NOTES: 1. SEE THE SHEAR WALL REINFORCEMENT NOTES FOR LAP LENGTH. 2. SEE PLAN AND WALL ELEVATIONS FOR ADDITIONAL INFORMATION. 27 1/2" 27 1/2" 6" 4 3/8" 24 5/8" 5 3/8" 12" 10 TYPICAL REINFORCEMENT AT WALL THICKNESS CHANGE
