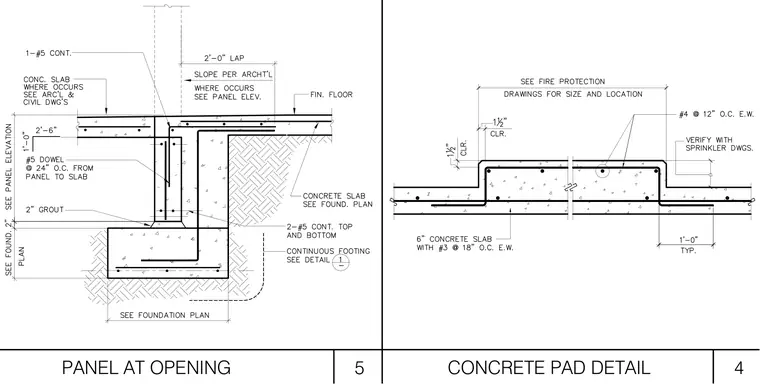

A concrete pad detail features a six-inch concrete slab reinforced with number three bars at eighteen inches on center each way. Sizing and location are coordinated with fire protection drawings, maintaining one and one-half inch clearance. Reinforcement transitions to number four bars at twelve inches on center each way with a one-foot typical lap at the depressed pad boundary, verified against sprinkler drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
