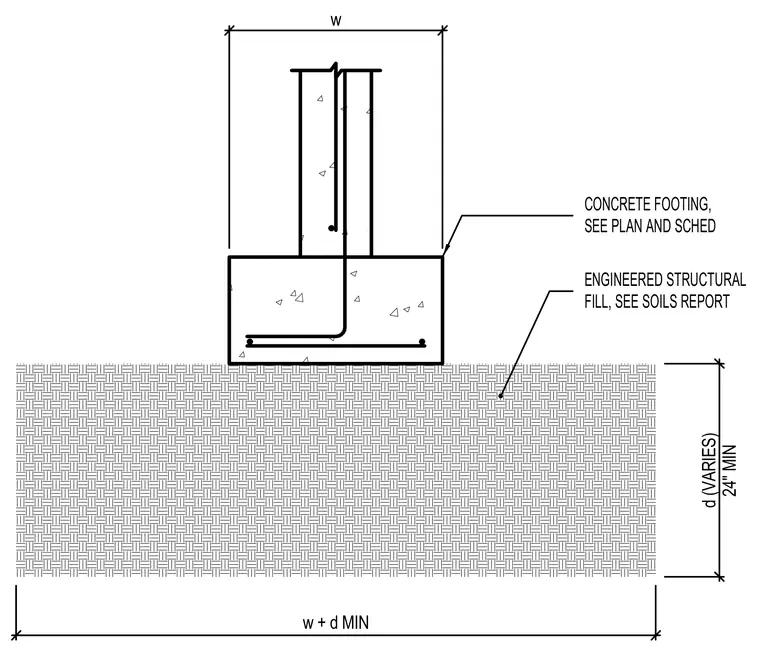

A concrete footing bears directly on a compacted layer of engineered structural fill specified in the soils report. The fill extends to a variable depth with a twenty-four inch minimum and lateral dimensions based on the footing width plus depth. The concrete footing size and reinforcement are determined per the structural plan and schedule.
ENGINEERED STRUCTURAL FILL, SEE SOILS REPORT CONCRETE FOOTING, SEE PLAN AND SCHED w w + d MIN d (VARIES) 24" MIN
