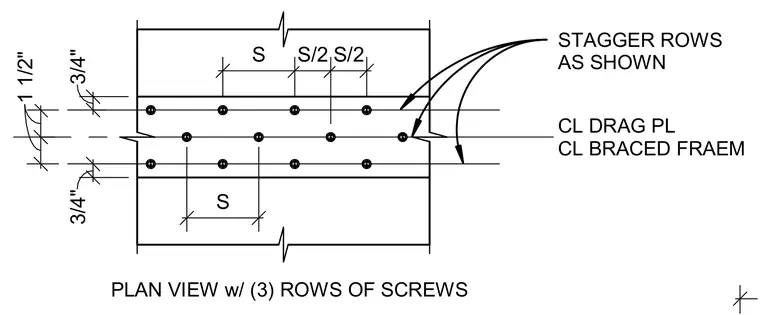

This structural plan view details a braced frame connection with a drag plate secured by three staggered rows of screws. Transverse dimensions of one and a half inches and three-quarters of an inch establish fastener placement relative to the centerline of the braced frame and centerline of the drag plate. The screw pattern features a longitudinal spacing of S with staggered rows offset by S over two.
S S S/2 S/2 STAGGER ROWS AS SHOWN CL DRAG PL CL BRACED FRAEM 1 1/2" 1 1/2" 3/4" 3/4" PLAN VIEW w/ (3) ROWS OF SCREWS
