Embedded bolts consisting of ASTM A307 or ASTM F1554 Grade 36 minimum are anchored into concrete with a minimum compressive strength of 2,500 PSI. Attachments of variable thickness bear against the face of the concrete and are secured with the embedded bolts. Dimensions indicate minimum concrete thickness, bolt embedment depth, minimum edge distance, and minimum bolt spacing for standard anchor placement.

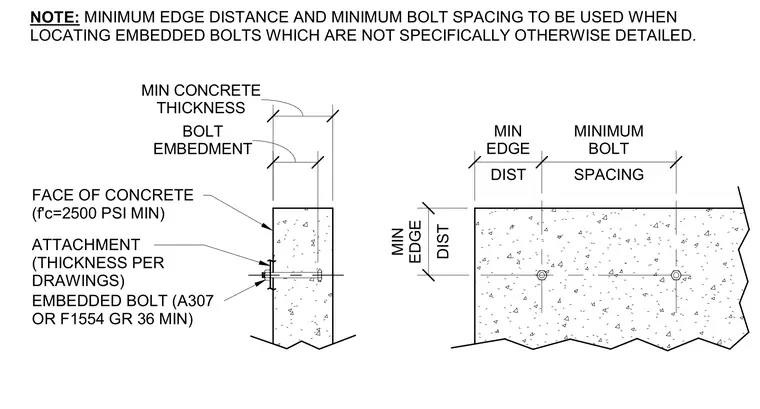

NOTE: MINIMUM EDGE DISTANCE AND MINIMUM BOLT SPACING TO BE USED WHEN LOCATING EMBEDDED BOLTS WHICH ARE NOT SPECIFICALLY OTHERWISE DETAILED. DIST MIN EDGE SPACING MINIMUM BOLT DIST MIN EDGE BOLT EMBEDMENT MIN CONCRETE THICKNESS FACE OF CONCRETE (f'c=2500 PSI MIN) ATTACHMENT (THICKNESS PER DRAWINGS) EMBEDDED BOLT (A307 OR F1554 GR 36 MIN)
